Mod.191 (588×492 mm)

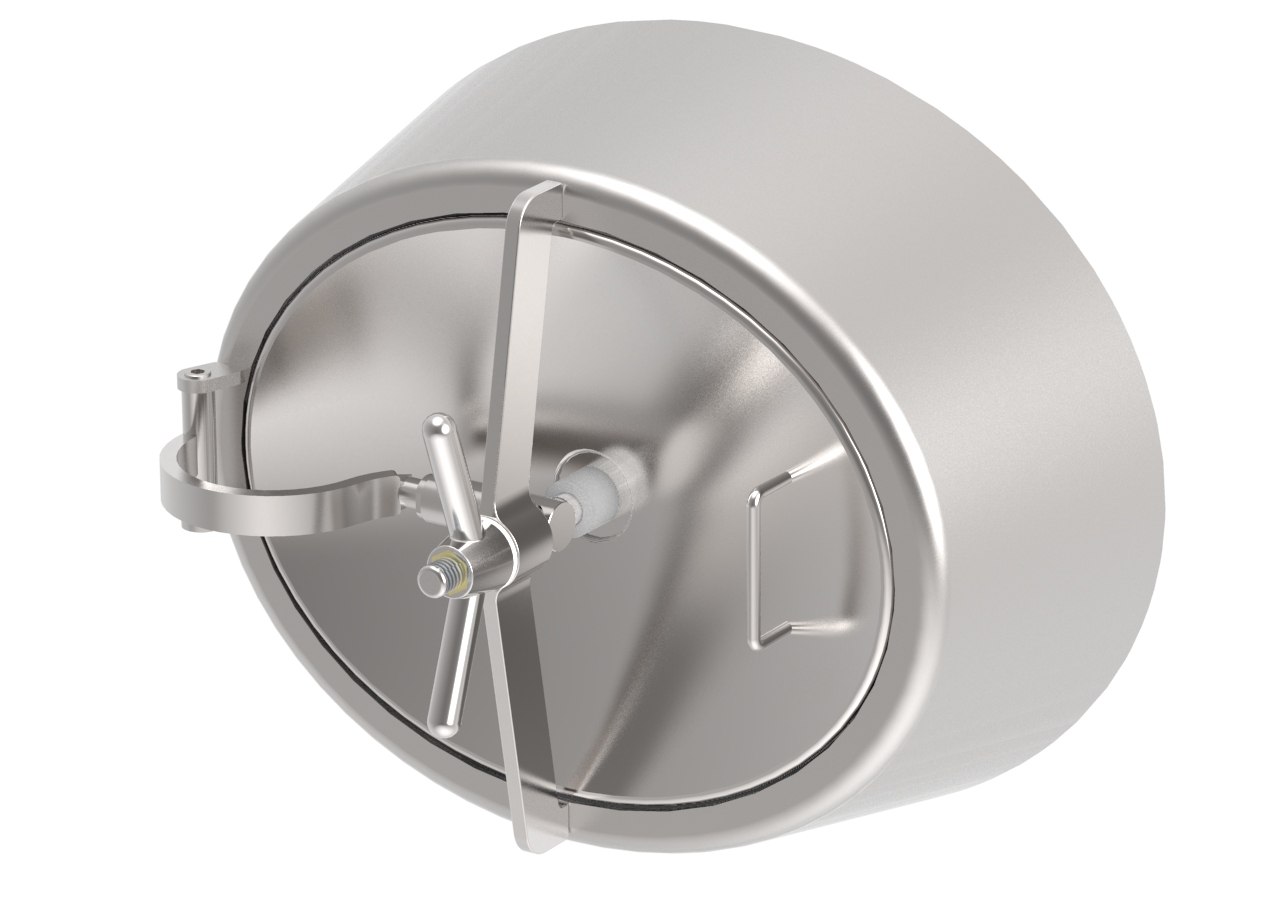

Oval manwaydoor, opening inwards and outwards, for stainless steel tanks
Complying with PED guidelines (max 100°C). Standard with EPDM gasket G/480 and s.s. handle V/I/190. Gasket on cover not glued. AISI 304L-14307 /On request: AISI 316L-14404 (*) Mod. 191 LDX with DUPLEX 14162 lid 2E finish (**)

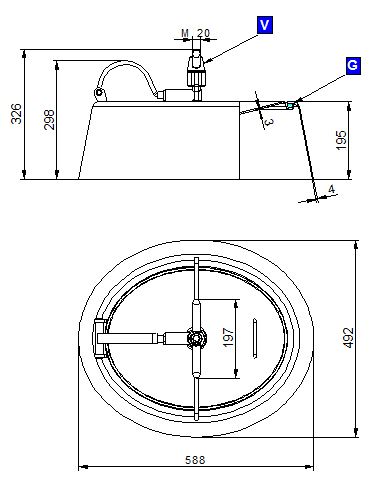

Technical drawings
Exploded
Mod. P.max bar Peso Kg Weight Kg
191 0 / 2,7 19,2
191 LDX (*) 0 / 3,3 19,2
G Guarnizione / gasket

V Volantino / Handwheel

(*) All parts not coming into contact with liquids are always in Material  Aisi 304
(**) Mod. with DUPLEX 14162 lid 2E finish
