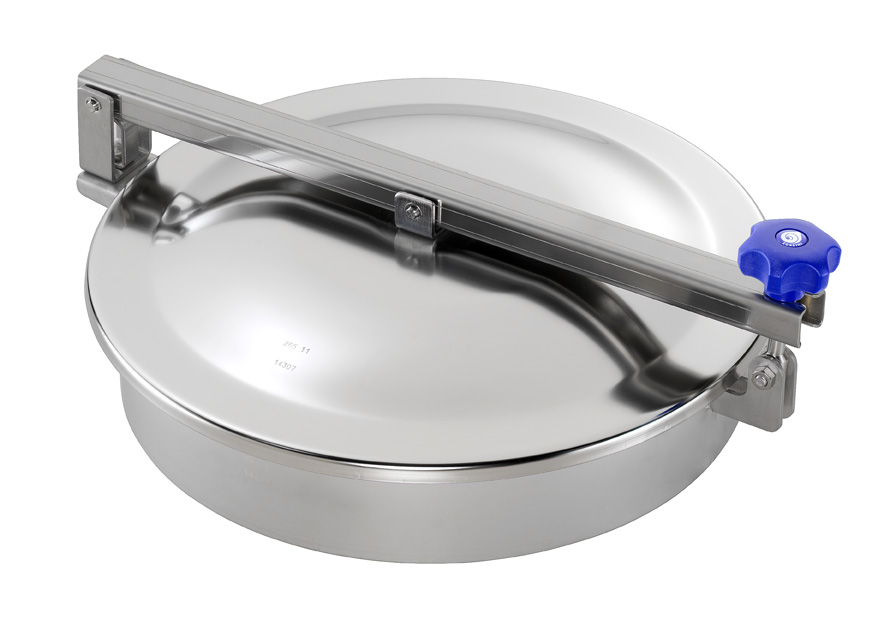

Mod. TV/500 (518 mm)
Round manhole cover with back-side and side-swing opening, for stainless steel tanks
Standard with EPDM gasket G/T500 and nylon handwheel MEC/80/A.
Gasket on frame not glued. Available also with hole for relief valve.
On request: s.s. handwheel MEC/80; s.s. handle VI/Z/175A.
AISI 304L-14307 / AISI 316L-14404 (*)
| Mod. | H mm | P.max bar | Kg |
|---|---|---|---|
| TV/500 | 100 | 0 / 0,0 | 14,4 |
| TV/501 | 150 | 0 / 0,0 | 16 |
| TV/502 | 200 | 0 / 0,0 | 17,7 |

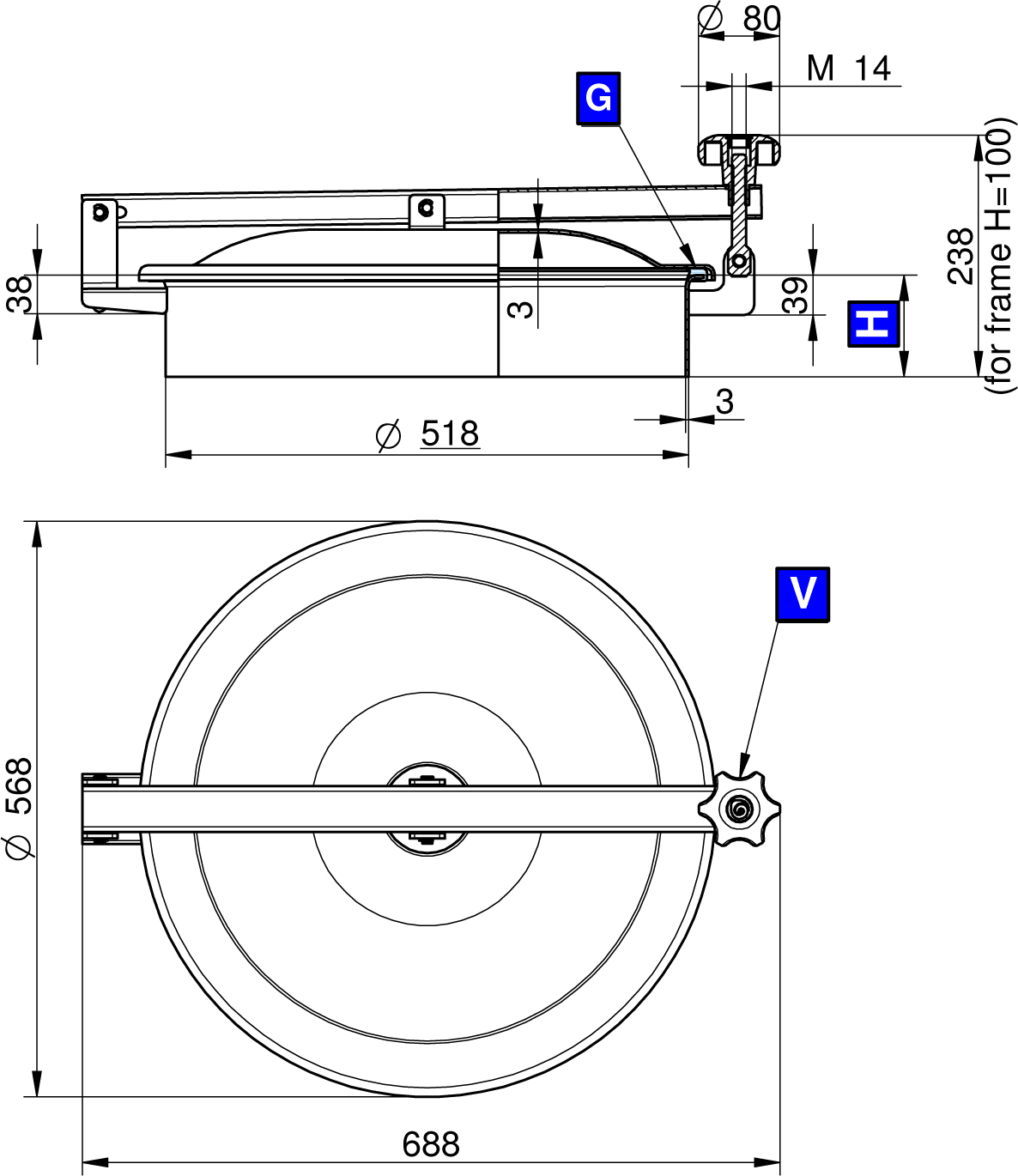

G Guarnizione / gasket
H Altezza telaio / Frame height
V Volantino / Handwheel
(*) All parts not coming into contact with liquids are always in Material Aisi 304
