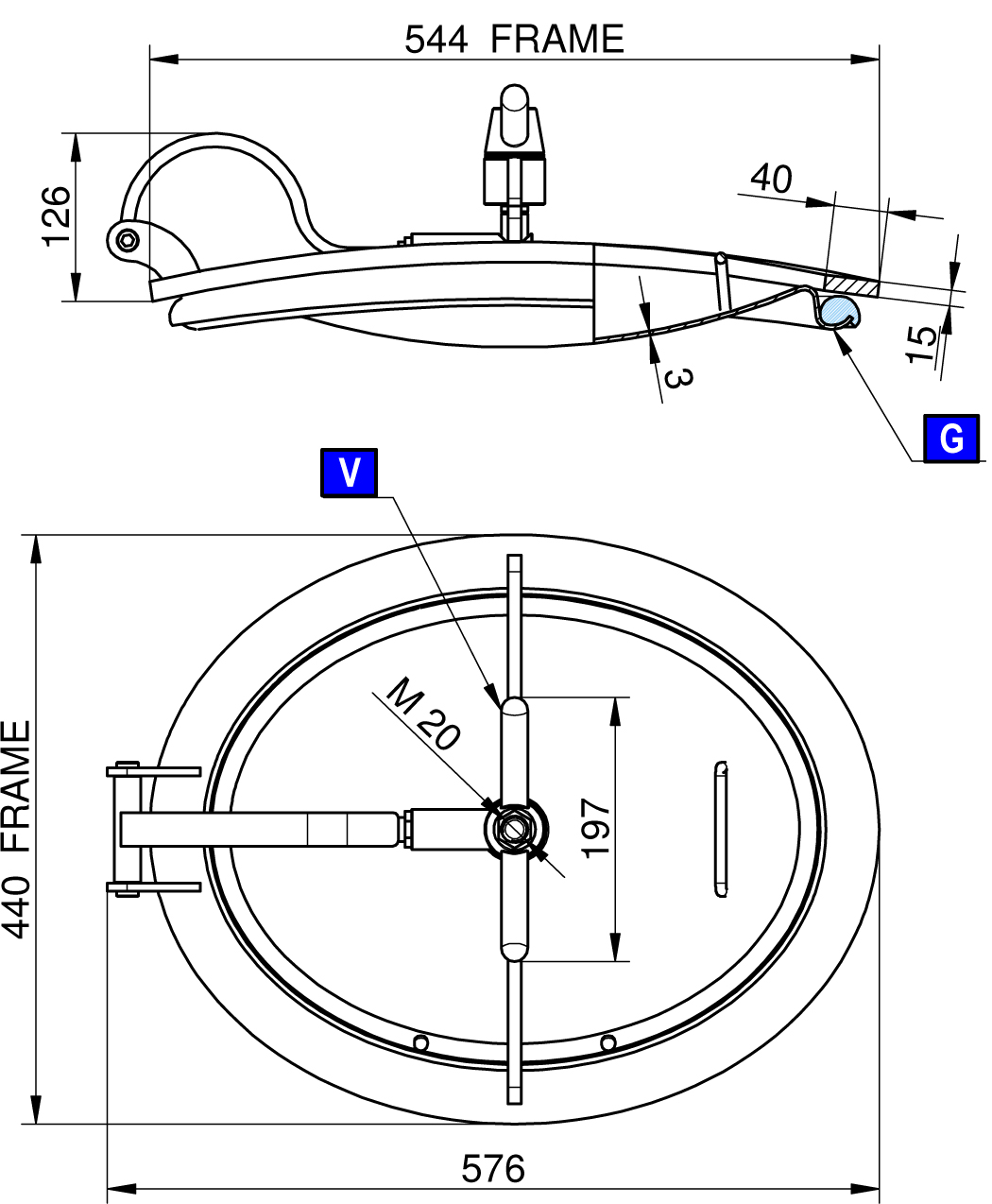

Mod.200/R (544×440 mm)

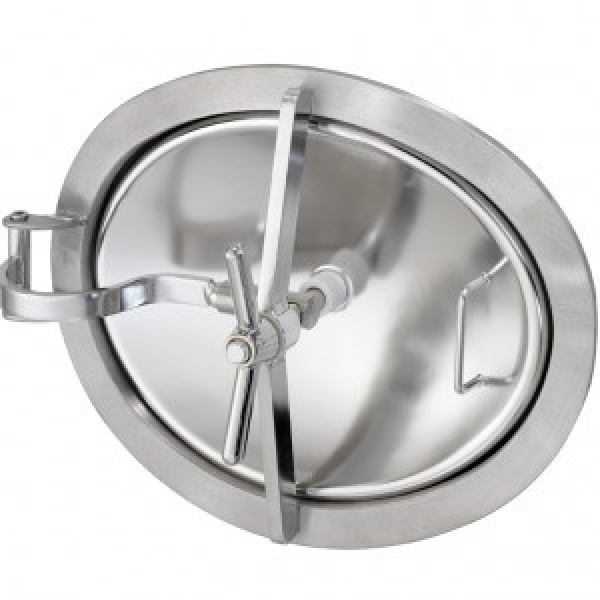

Oval manwaydoor, opening inwards and outwards, for stainless steel tanks
Complying with PED guidelines (max 100°C). Standard with EPDM gasket G/200/R and s.s. handle V/I/190.
Gasket on cover not glued.
Sizes available from Ø 1500 to Ø 4000.
AISI 304L-14307 / AISI 316L-14404 (*)
| Mod. | P.max bar | Kg |
|---|---|---|
| 200R | 0 / 2,8 | 15,2 |
G Guarnizione / gasket
V Volantino / Handwheel
(*) All parts not coming into contact with liquids are always in Material Aisi 304
